15A Single Power Pole Battery Connector

Anderson Powerpole connectors are low cost, small, reliable, versatile, and
capable of high current use.

Due to their small size, Powerpole connectors suit tight applications where
standard Anderson battery connectors (or other brand connectors) may be
difficult to install.

These connectors provide tremendous contact pressure that remains high
with repeated insertions. The self-cleaning silver contacts provide a high
conductivity. The lip on the end of the contact catches on the edge of a
piece of metal in the housing. This prevents the contact from backing out.
It is important to be sure that this happens when assembling connectors.
You will hear a loud click when the contact snaps into place.

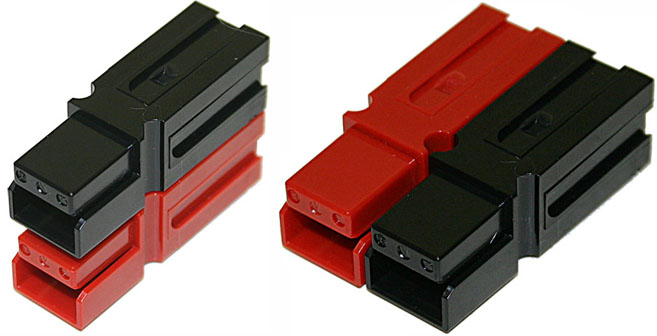

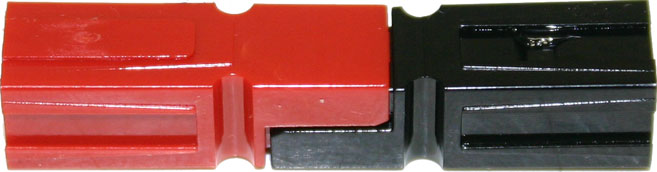

No polarity is inherent in the shell or contact. Each shell has two raised
shapes and two recessed shapes that allow the connectors to interlock.
This is what provides the versatility. Polarity is determined by how they
are plugged together.

Size

• 7.9mm D x 7.9mm W x 24.6mm L


Housings are modular and genderless

• Powerpole connectors provide 600 Volts continuous, AC or DC operation
• Contact Barrel Wire Size: 0.5mm2 to 1.3mm2

Flat wiping contact system

• Minimal contact resistance at high current, wiping action cleans contact surface during

• connection / disconnection

Coloured modular housings (red or black)

• Provides visual identification of proper mating connector

Moulded-in dovetails

• Secures individual connectors into 'keyed' assemblies which prevents misconnection with similar configurations
