Spark Shop Ultimate
Part number: 17-538
Pack size: EA
Group: Connector
Type: *Weather Pack
Application: Kit
Size: 2 Pin
Feature: 20A

Part # 17-538
Part # 17-538

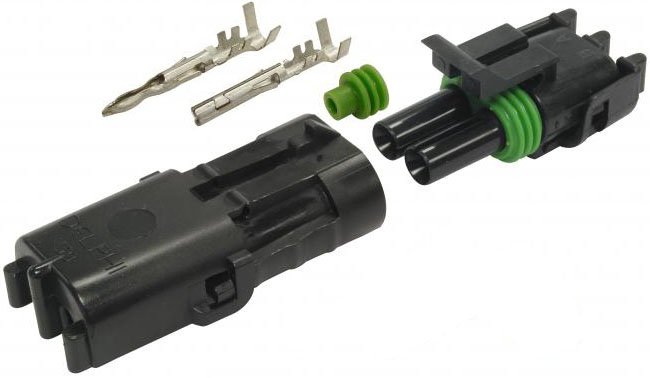

Delphi Weatherpack Connectors are environmentally sealed in-line electrical
connectors specifically designed to withstand exposure to extreme temperatures,
chemicals, fluids, moisture, dust, dirt and other environmental hazards.

Because of its exceptional sealing performance Weather Pack is extensively used
in demanding applications including commercial, industrial, agricultural, off-road,
and marine applications.

  • Sealed system specifically designed to withstand exposure to extreme
    temperatures, chemicals and fluids
  • Utilizes triple-rib peripheral silicone rubber seals and individual towers
    to provide terminal isolation for connector alignment
  • Pin and sleeve configuration to alleviate stress relaxation
  • Dual-locking tangs on terminals help prevent backing out
  • Terminal plugging requires no orientation
  • Positive locking indexing prevents mismating of connectors
  • Low energy, low voltage capability for vehicle electronics
  • Secondary lock and Connector Position Assurance (CPA) for improved
    system design
  • Rated at up to 20 amps
