Part number: 19-429
Pack size: EA
Type: Beacon - LED
Mount: Magnetic
Colour: Amber
Suppression: Suppression - Basic
Size: 138 x 149mm
Feature: Class 1 - R65 - Sim Rotate / Flasher

Part # 19-429
Part # 19-429

Class 1 = On-road vehicles operating in speed of traffic (eg: fire, police, ambulance,
rescue, pilots, breakdown utes, tow trucks)
Class 2 = Offroad vehicles and those NOT in speed of traffic (eg; forklifts, industrial
machines etc)
Class 3 = Not moving at all (eg; buildings, gensets etc)

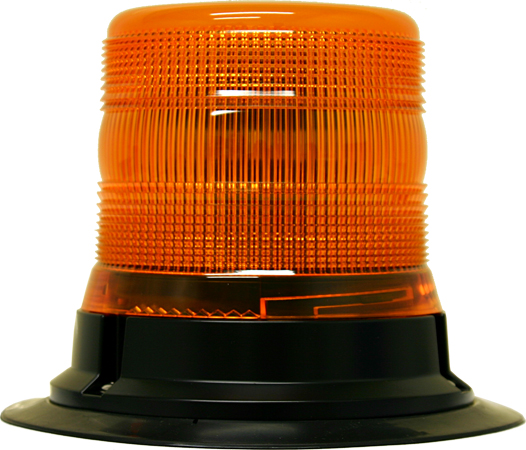

19-429 is a Class 1 beacon and meets ECE REG65 and ECE REG10 approval.
It is w
eatherproof and contains twelve high intensity LEDs producing 13 selectable
flash patterns.

  • Class 1, ECE REG65 and ECE REG10 approved
  • 13 flash patterns
  • Operating Voltage: DC10V-30V

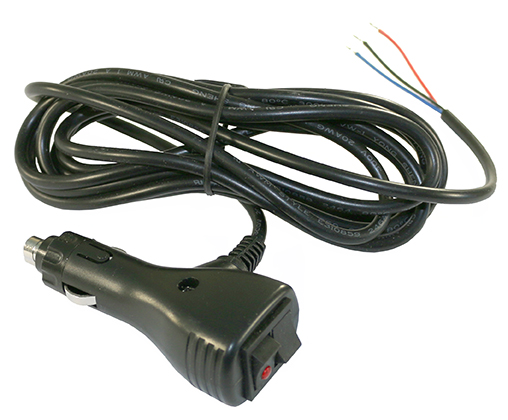

  • Cable length: 3.5m with cigarette plug (5A fuse)
  • Reverse Polarity Protected
  • Storage Temperature Range: - 40C ~ + 90C
  • Operating Temperature Range: - 30C ~ + 65C




Setting Flash Pattern

COLOR FUNCTION CONNECT TO

Red Power +VDC

Black Ground Chassis Ground

Blue Pattern Switching Chassis Ground to Activate

Yellow Syn(simulated) All Yellow Wires


Press the switch on the cigarette lighter plug:

  • Less than 1 second for the NEXT pattern
  • 1 to 3 seconds for the PREVIOUS pattern
  • 3 to 5 seconds for the DEFAULT pattern
  • Greater than 5 seconds to TURN OFF the device


Flash Patterns -
all flash patterns can be synchronised

1 - Single Flash
2 - Double Flash
3 - Rotator
4 - Single Flash 75 Sim All flash
5 - Single Flash 75 Flashes Per Minute
6 - Single Alert 75 Flashes Per Minute
7 - Quad Flash 75 Flashes Per Minute

8 - Double Flash 75
Flashes Per Minute
9 - Rotator 75 Flashes Per Minute
10 - Rotator 100
Flashes Per Minute
11 - Rotator 150 Flashes Per Minute
12 - Rotator 200 Flashes Per Minute
13 - OFF
