Note: The screws that hold the base maybe loose and require tightening

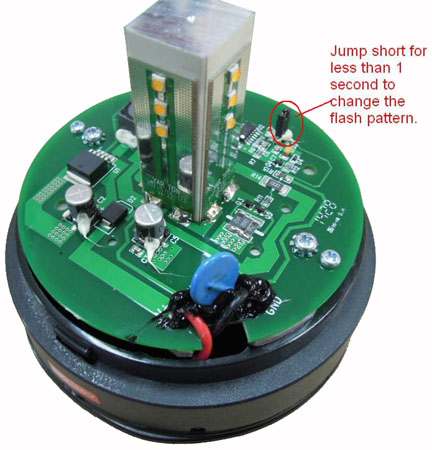

To change the flash pattern: Remove the lens and jump short the black shutter pin
for less than 1 second - see second product image above.
(1) Single Flash - 60 FPM (Flashes per minute)
(2) Single Flash - 122 FPM (Default)
(3) Double Flash - 75 FPM
(4) Double Flash - 122 FPM
(5) Triple Flash - 75 FPM
(6) Quad Flash - 75 FPM
(7) Quad Flash - 122 FPM
(8) Quint Hold Flash - 75 FPM
(9) Burst 8 Flash - 75 FPM
(10) Random Flash
