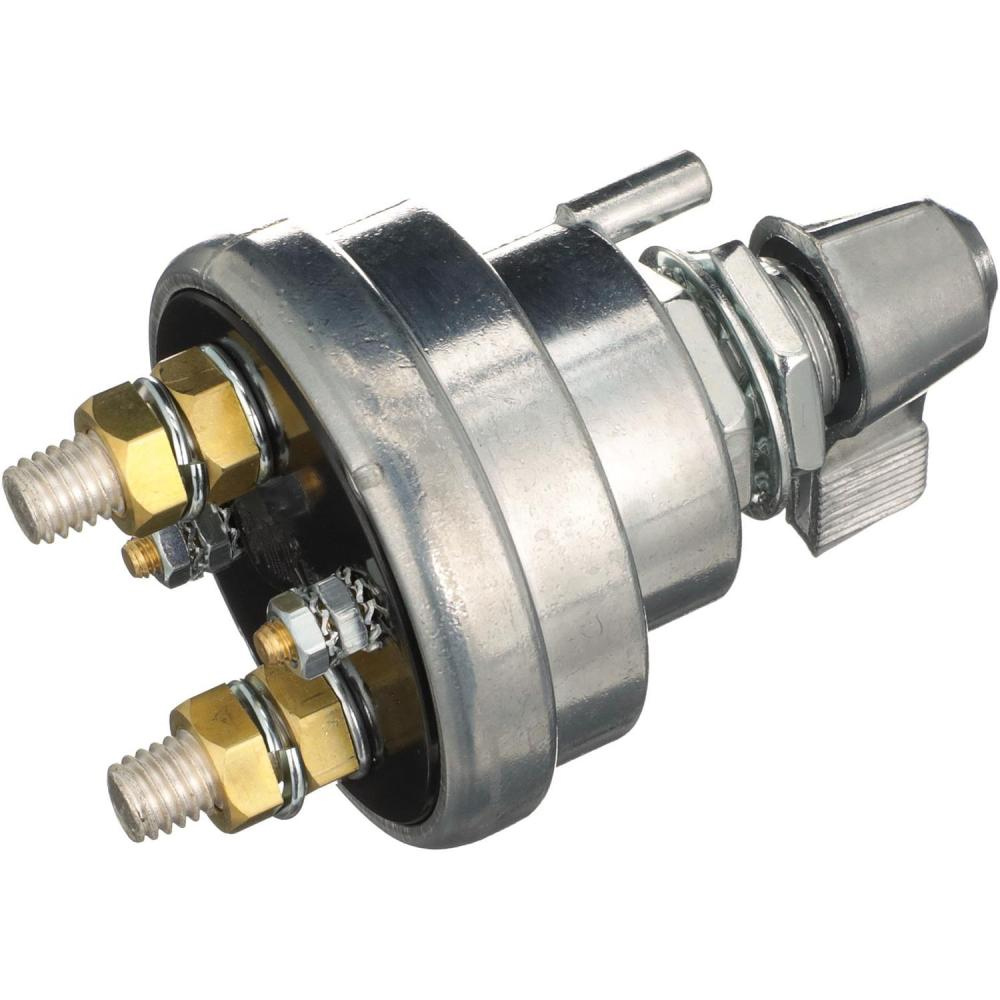

Battery Master Switch Heavy Duty

It is strongly advised to wire this master switch to the negative circuit.
Switch should not be over cranked, or covered in grease, and should be
mounted in a protected area.

For battery and alternator or generator field circuit. Designed to break alternator / generator
circuit prior to battery circuit disconnect. Reduces posibility of theft or accidental electrical fires.

• 0.25 inch diameter anti-rotation indexing post
• Incorporated silver plated contacts
• One piece die-cast housing sealed with o-rings atbase and mounting stem to keep out dust and moisture
• Two 3/8 inch and two number 10-32 copper alloy stud terminals with hex nuts and lock washer
• Overall length 4 1/8 inch
• Diameter 2 5/8 inch approximately
• Fits panel up to 1/4 thick

Continuous rating (Make / Break)

Large studs: 180 amps
Small studs: 20 amps
Intermittent rating (carrying): Large studs 1000 amps (20 seconds ON - 5 minutes OFF)

Below linked switch is a marine version of this switch
