Part number: 32-357
Pack size: EA
Group: On/On
Type: Illuminated - 12V
Feature 1: DPDT
Feature 2: Green/Amber - LED
Feature 3: 12V - 20A

Part # 32-357
Part # 32-357

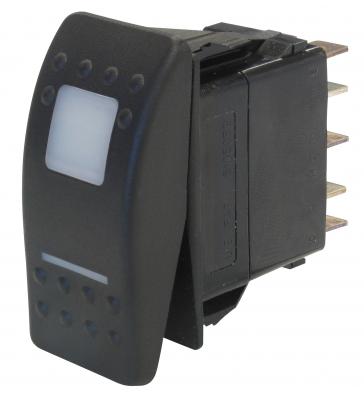

Carling Type Sealed Illuminated Rocker Switch

  • Designed for complete protection aganst dust and moisture
  • Features include black plastic housing
  • Nylon bezel
  • Silver contacts

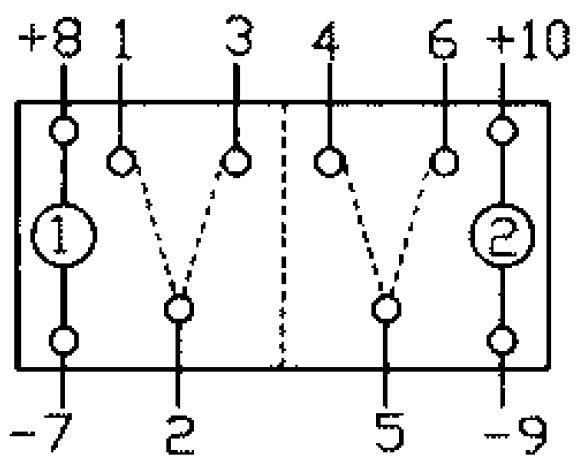

  • White lens with independant pilot light GREEN LED (upper) is illuminated
    when dash lights are switched on (use terminals T8 and T7)
    White lens with dependant pilot light AMBER LED (lower) is illuminated
    when switch is activated (use terminals T10 and T9)
  • 0.250 quick connect blade terminals
  • Mounting dimentions: 37mm x 21.5mm
For 24V applications, see below 24V to 12V rocker switch reducer which enables Pollak
12V illuminated rocker switches to operate in 24V applications
