Part number: 32-358
Pack size: EA
Group: Off/On
Type: Illuminated - 12V
Feature 1: DPST
Feature 2: Green/Amber - LED
Feature 3: 12V - 20A

Part # 32-358
Part # 32-358

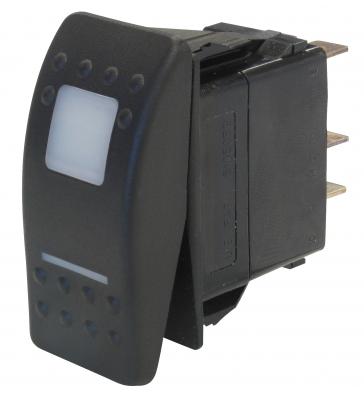

Carling Type Sealed Illuminated Rocker Switch

  • Designed for complete protection aganst dust and moisture
  • Features include black plastic housing
  • Nylon bezel
  • Silver contacts

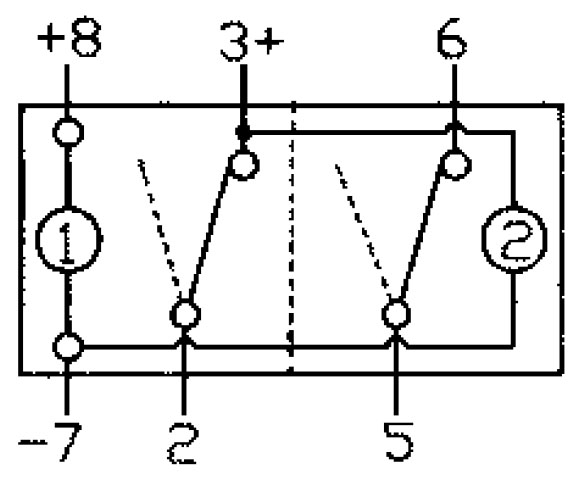

  • White lens with independant pilot light GREEN LED (upper) is illuminated
    when dash lights are switched on (use terminals T8 and T7)
  • White lens with dependant pilot light AMBER LED (lower) is illuminated
    when switch is activated (use terminals T7 and T3)
  • 0.250 quick connect blade terminals
  • Mounting dimentions: 37mm x 21.5mm
For 24V applications, see below 24V to 12V rocker switch reducer which enables
Pollak 12V illuminated rocker switches to operate in 24V applications
