Pepperl & Fuchs
Part number: 32-600
Pack size: EA
Type: Inductive
Distance: 4mm
Output: NPN (- Switching)
Operation: N/O-N/C
Thread: M12
Mount: Flush

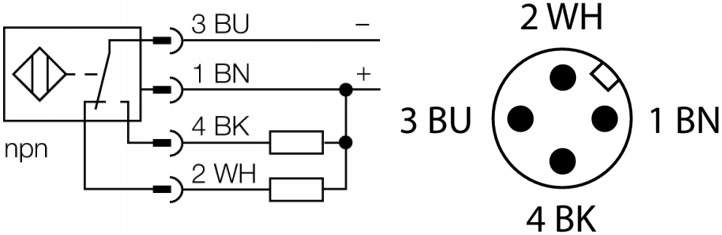

Feature: 4 pin M12, IP67

Part # 32-600
Part # 32-600
Part # 32-600

General specifications

  • Switching element function:  NPN NO/NC
  • Rated operating distance:  4 mm
  • Installation:  flush
  • Assured operating distance:  0 ... 3.24 mm
  • Reduction factor rAl:  0.39
  • Reduction factor rCu:  0.3
  • Reduction factor r304:  0.7

Nominal ratings

  • Operating voltage:  10 ... 30 V
  • Switching frequency:  0 ... 1500 Hz
  • Reverse polarity protection:  Reverse polarity protected
  • Short-circuit protection:  Pulsing
  • Voltage drop: less that or equal to 3 V
  • Operating current:  0 ... 200 mA
  • Off-state current:  0 ... 0.5 mA typ. 0.1 µA at 25 °C
  • No-load supply current:  less that or equal to 20 mA
  • Switching state indicator:  Multihole LED, yellow

Functional safety related parameters

  • MTTFd:  1560 a
  • Mission Time (TM):  20 a
  • Diagnostic Coverage (DC):  0 %

Approvals and certificates

  • UL approval:  cULus Listed, General Purpose
  • CSA approval:  cCSAus Listed, General Purpose
  • CCC approval:  CCC approval / marking not required for products rated ≤36 V

Ambient conditions

  • Ambient temperature:  -25 ... 70 °C (-13 ... 158 °F)

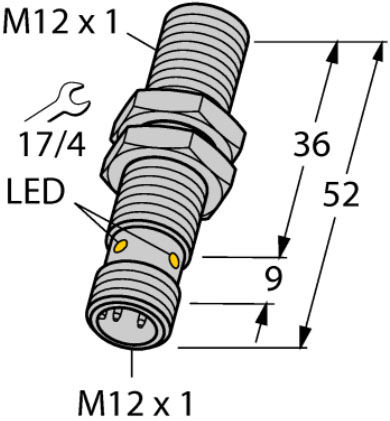

Mechanical specifications

  • Connection type: Connector M12 x 1 , 4-pin
  • Housing material:  Brass, nickel-plated
  • Sensing face:  PBT
  • Degree of protection:  IP67
