Inductive Sensor 40mm PNP N/O-N/C M30

• Rectangular, height 40 mm
• Variable orientation of active face in 5 directions
• Plastic, PBT-GF30-V0
• High luminance corner LEDs
• Optimum view on supply voltage and switching state from any position
• Factor 1 for all metals
• Increased switching distance
• Protection class IP68
• Resistant to magnetic fields
• Auto-compensation protects against pre-attenuation
• Partially embeddable
• DC 4-wire, 1065 VDC
• Changeover contact, PNP output
• M12 x 1 male connector

• Rated switching distance: Sn 50 mm
• Mounting conditions: Non-flush, flush
• Secured operating distance: < (0,81 x Sn) mm
• Repeat accuracy < 2 % of full scale
• Temperature drift < 10 % / < 20 %, -25 C v +70 C
• Hysteresis: 315 %
• Ambient temperature: -30+85 C

• Operating voltage: 10 - 65 VDC
• Residual ripple: < 10 % Uss
• DC rated operational current: < 200 mA
• No-load current: < 15 mA
• Residual current: < 0.1 mA
• Isolation test voltage: < 0.5 kV
• Short-circuit protection: yes
• Voltage drop at Ie: < 1.8 V
• Wire breakage/Reverse polarity protection: yes/ Complete

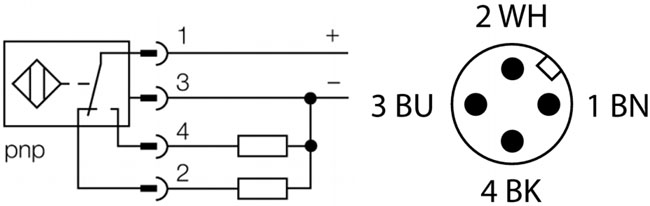

• Output function: 4-wire, Complementary contact, PNP
• Switching frequency: 0.25 kHz

• Design: Rectangular,CK40

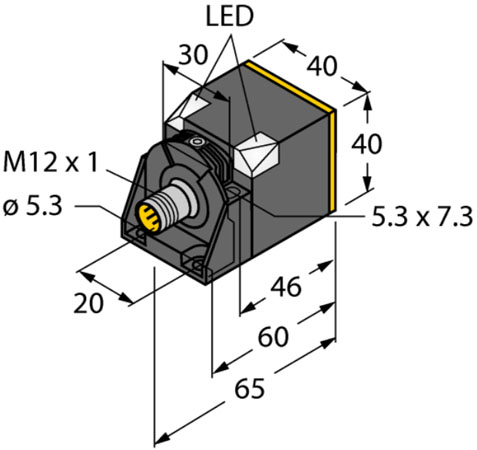

• Dimensions: 65 x 40 x 40 mm variable orientation of active face in 5 directions
• Housing material: Plastic, PBT-GF20-V0, Black
• Active area material: Plastic, PA12-GF30, yellow
• Electrical connection: Connectors, M12 1
• Vibration resistance: 55 Hz (1 mm)
• Shock resistance: 30 g (11 ms)
• Protection class: IP68
• MTTF: 874 years acc. to SN 29500 (Ed. 99) 40 C
• Packaging unit: 1

• Power-on indication: 2 LEDs,Green
• Switching state: 2 LEDs, Yellow
• Included in delivery: Fixing clamp
