Battery Master Switch Contour

Contour BEP Battery Master Switch

The 35-2701 Contour Battery Master Switch offers a number of unique features.
The highlights being the contour lock system, allowing it to be a stand alone unit, or locked together with other switches.

The 35-2701 also features a control knob which cannot be removed whilst in the ON or OFF
position, however can be removed by switching to an anti-clockwise 45 position.
The control knob also features an interchangable labelling system allowing a full range of
applications.

The 35-2701 also features removable side plates on 4 sides for easy cable access, plus a
rear cover insulating the rear terminals against any short circuits. This ensures the switch
meets ABYC requirements.

This unit is supplied with a removable rear cover insulating the terminals against any short
circuits, and can be either surface or recess mounted by cutting a 2 1/16" (52mm) hole.

• Continuous Duty Rating: 275 Amps
• Intermittent Duty Rating: 455 Amps
• Maximum Intermittent Duty Rating: 1250 Amps for 10 seconds
• Voltage rating: 48 Volts DC
• Operation: On/Off
• Termination stud size: 2 x 10mm

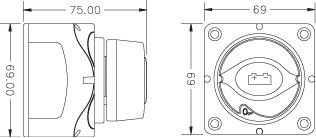

• Dimensions: 69mm x 69mm x 75mm high
• IPX7 Waterproof rated (30mins to 1M)
• Ignition Protected
