Toggle Switch Headlamp 3 Blade Terminals
Part number: 07-4056
Pack size: EA
Group: Off/On/On
Type: Non-Sealed - Lucar
Feature 1: SPDT
Feature 2: 12V - 15A
Feature 3: Mt. ID 13mm
Pack size: EA
Group: Off/On/On
Type: Non-Sealed - Lucar
Feature 1: SPDT
Feature 2: 12V - 15A
Feature 3: Mt. ID 13mm
Toggle Switch Headlamp 3 Blade Terminals

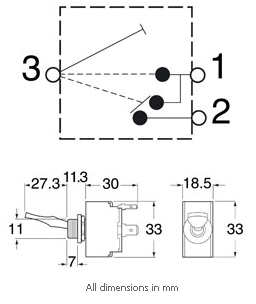

3 position: top = off, Centre = park lamps, lower = headlamps, Push-on terminals
Mounting 13mm diameter opening
For panels up to 6mm thick
Maximum Load
15 amps @ 12V
7.5 amps @ 24V
