Spark Shop Ultimate
Part number: 17-136
Pack size: EA
Group: Connector - Trailer
Type: Flat
Function: Socket
Size: *7 + 2 Pin
Feature: Plastic 50A

Part # 17-136
Part # 17-136

This unique 9 pin (7 + 2) trailer socket features a built-in 50 Amp connector with
a 7 pin trailer connection. This eliminates the need for extra plugs and sockets by
keeping it in a single compact unit.

The 9 pin trailer socket is perfect for providing power to fridges and other
appliances from your vehicle or caravan when requiring a 50 Amp power
connection, as well as running power to your trailer lights from your vehicle.

There is no crimping or soldering required with the 9 pin trailer socket unlike
other similar 50 Amp connectors on the market. The 9 pin trailer plug socket

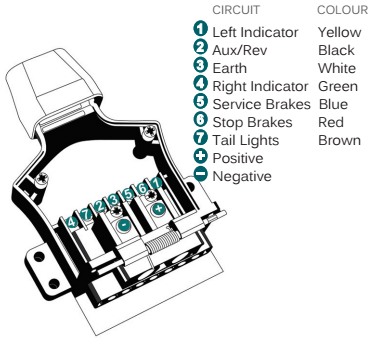

allows cable to be secured using screws and a Philips head screw driver. Refer
second product image above.  Connectorx

  • Durable polycarbonate housing
  • Spring loaded dustproof cover
  • No crimping or soldering required
  • Stainless steel Philips head screws
  • Silver plated copper pins
  • 7 pins rated to 15A at 12V
  • 2 pin 50A connector suits cable up to 8mm2
