Deutsch Breakaway Socket Assembly 9 Pin

This connector is OE on many makes of agricultural vehicles such as John Deere. The Deutsch
J1939/12 ISO boxcreates a communication pathway between an on-board CAN system and the
electroniccomponents on an attached impliment.

Note: suits HD30 size 24 accessories

Note: 17-744 mates with 17-704 and is not supplied with terminals and requires the following terminals:

5 x size 16 terminals (17-5514 supplied as a pack of 20 terminals)
2 x size 12 terminals (17-686 is supplied as a pack of 20 terminals)

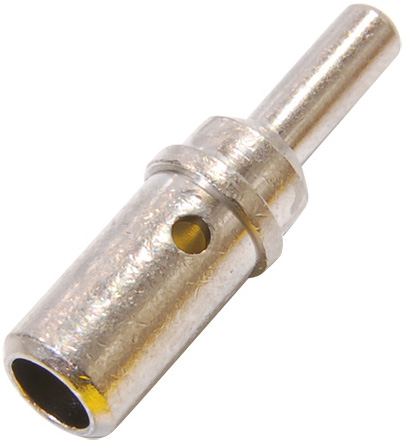

2 x size 8 terminals (17-743 is supplied as a pack of 1)
