Spark Shop Ultimate
Part number: 19-1020S
Pack size: EA
Group: Flood < 30W
Type: Round/Oval
Feature: Suppression - Basic
Output: 27W - 1620lm
Size: 128x116x24mm

Part # 19-1020S
Part # 19-1020S
Part # 19-1020S

Note: This lamp has interference suppression which will minimise
the effects of interference.

For best possible solutions that will ensure the effects of interference
are reduced to an insignificant (nearly
undetectable levels)
see below
linked parts.

LED work lights have the potential to affect other electronic equipment, due to their
circuitry. This becomes more significant when they are interconnected and / or in
close proximity to each other. Interference can be identified by white noise on a radio
or flickering images on a monitor, creating an unsafe working environment.

  • Voltage: 9 - 32V DC
  • Lead Length: 1 metre
  • Power Consumption: 9 x 3W LED's
  • Current Draw: 2.1A at 12V, 1.1A at 24V
  • Color Temperature: 6000K

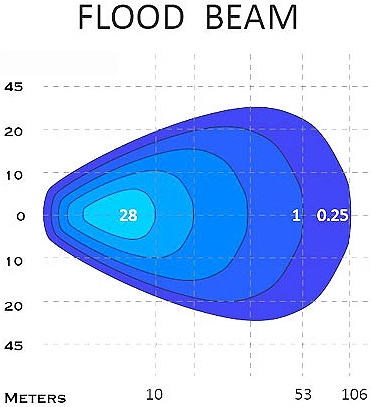

  • Beam Pattern: Flood Beam
  • Beam Angle: 60 degrees
  • Operating Temperature: -40C to +60C
  • IP Rating: IP67
  • Protections: Reverse Polarity
  • Housing Material: Die-cast Aluminum Housing
  • Lens Material: Polycarbonate
  • Electronics: Integrated-Epoxy Encapsulated
