Class 1 LED Light Bar Clear Lens Amber LED

Note: Not supplied with magnet

Class 1 = On-road vehicles operating in speed of traffic (eg: fire, police, ambulance,
rescue, pilots, breakdown utes, tow trucks)
Class 2 = Offroad vehicles and those NOT in speed of traffic (eg; forklifts, industrial
machines etc)
Class 3 = Not moving at all (eg; buildings, gensets etc)

• See below 19-725-01 Magnetic Mount Kit to upgrade 19-725 to enable it to be
  magnetically mounted. The 19-725 comes pre-fitted with cigarette
  plug with switch to make magnetic mounting easy.

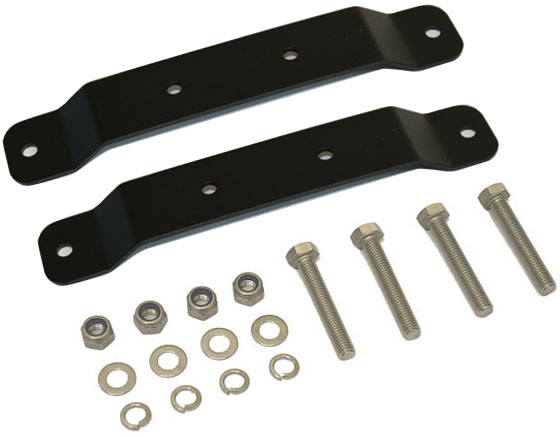

• Simply remove the cigarette plug and utilise the supplied mounting brackets
  and fittings for permanent mount applications.

• Warning Patterns:19 flash patterns.
• Voltage:Multivolt suitable for 10 to 30 volt systems.
• Power Consumption: 20W (varies with flash pattern)
• Protection: Reverse polarity protection.
• Cable LengthFixed: 2.5 metre sheathed multi-core cable with cigarette plug.
• Compliance: SAE Class 1
• IP67

Installation
Red = +VDC
Black = Ground
Yellow =+VDC/Flash Pattern Change

If the cigarette plug is removed for permanent mount applications then a momentary switch
(not included) connecting the Green wire to positive voltage is required to cycle through the
light bars flash patterns.

Changing Flash Patterns
Pressing the momentary switch for 0.5 to 2 seconds will cause the light to switch to the next
pattern. Pressing the momentary switch for 2.5 seconds will cause the light to go back to the
first pattern.

Flash Patterns:
1) Single flash
2) Double flash
3) Quad flash
4) Strobo flash
5) Rotation
6) Combination
7) Ten flash
8) Single flash + ten flash
9) Strobo flash + single flash
10) Rotating
11) Combination flash
12) Alternate single flash
13) Alternate flash
14) Alternate quad flash
15) Alternate strobo flash
16) Alternate single flash
17) Alternate ten flash
18) Speed alternate double flash
19) Speed alternate quad flash
