Emergency Hazard Warning Lamp Green

Features / Specifications

• Various Flash Pattern: 180 Degree
• 12 Strobe Function Synchronised
• IP67 Rated
• Voltage Range: 12-24 Volt

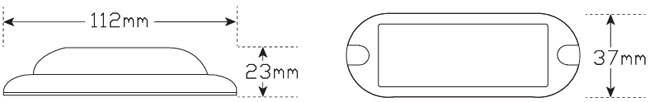

• 112mm x 37mm x 23mm

Fitting Instructions
Fix to flat surface at two fixing points.

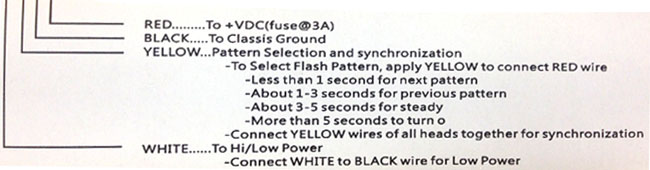

Wire Colour & Flash Pattern Selection
Red - Power
Black - Earth
White - Low Power [Connect white wire to black wire for low power, strobe functions only]
Yellow - Synchronising (Optional) [1 sec next pattern] [1-3 sec previous] [3-5 sec steady]
[5 sec + off]. Connect yellow wires of all lamps together for synchronisation.
