5x7 Inch LED Headlamp High / Low / Park

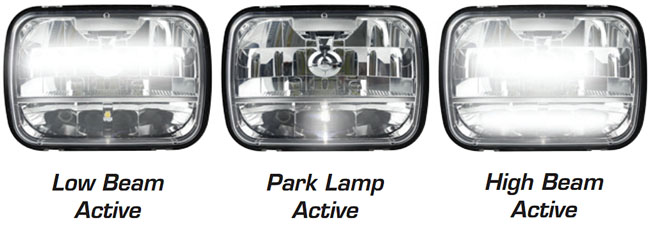

Road Legal ECE Approved Low Beam, High Beam, and Park Lamp

Sealed Beam Conversion Upgrade - Retro fit to existing globe type
5 x 7 inch sealed beam headlamps

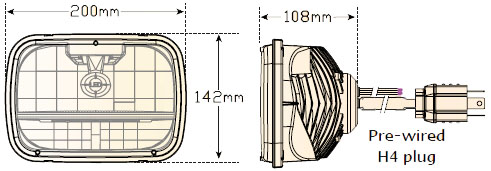

• Size:  200mmx 142mm x 108mm
• Voltage Multivolt 11-32V
• LED Qty High 4 x 3W, Low 1 x 15W, Park 2 x 0.5W
• Lumen:  Low Beam 570lm / High Beam:  1096lm
• Colour:  Temp 6500K
• Cable:  120mm with H4 plug
• Lens:  Polycarbonate
• Base:  Die Cast Alloy
• Draw @13.8V:  Park 0.06A / Low 1.15A / High 2.14A
• Draw @28V:  Park 0.06A / Low 0.55A / High 1.02A
