Part number: 20-369
Pack size: EA
Group: Junction Box
Type: Plastic
Function: Lid - Standard
Size: 115 x 90 x 55mm
Feature: IP65

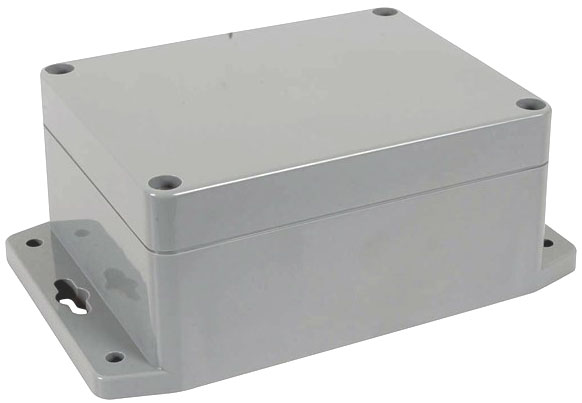

Part # 20-369
  • Made with ABS Material
  • Moulded in dark grey
  • Operating temperature: -20 to +80C
  • Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
  • The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
  • Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
  • Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
  • Designed to IP65 of IEC529 and NEMS 4 (dust and hose proof)
  • Internal guide slots for mounting PCB assemblies vertically
  • Dark Grey with Mounting Flange
  • Dimensions Box: 115(W) x 90(D) x 55(H)mm
  • Dimensions Base: 145(W) x 90(D)mm
