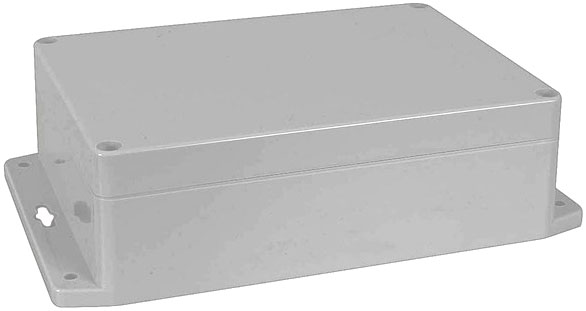

Enclosure Junction Box IP65 Polycarbonate Flanged

• Made with ABS Material
• Moulded in dark grey
• Operating temperature: -20 to +80C
• Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing
  the ingress of moisture and dust
• Designed to IP65 of IEC529 and NEMS 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically
• Dark Grey with Mounting Flange
• Dimensions Box: 171(W) x 121(D) x 55(H)mm
• Dimensions Base: 201(W) x 121(D)mm
