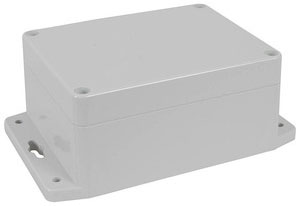

Spark Shop Ultimate
Part number: 20-371
Pack size: EA
Group: Junction Box
Type: Plastic
Function: Lid - Standard
Size: 171 x 121 x 80mm
Feature: IP65

Part # 20-371
  • Made with Polycarbonate material
  • Moulded in light grey.
  • Operating temperature: -40 to +125C
  • The lid and base incorporate a tongue and groove sealing system with a
    neoprene gasket
  • Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass
  • Wall mounting holes and lid fixing screws are outside the sealing area thus
    preventing the ingress of moisture and dust
  • Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
  • Internal guide slots for mounting PCB assemblies vertically
  • Dimensions Box: 171(W) x 121(D) x 80(H)mm
  • Dimensions Base: 201(W) x 121(D)mm
