Trailer Brake Module Automatic Leveling & Calibration

Bargain - Only available while stocks last

When the leader in vehicle towing electrical interconnects, ERICH JAEGER, wanted to develop a
New Generation brake controller, they teamed up with the FIRST name in towing products and
the leader in brake controller design, development and technology, CURT Manufacturing USA.
The result is a revolution in brake controls, The SpectrumTM, Innovative Design, Stylish appeal.
Jointly designed, developed and tested for Australian conditions.

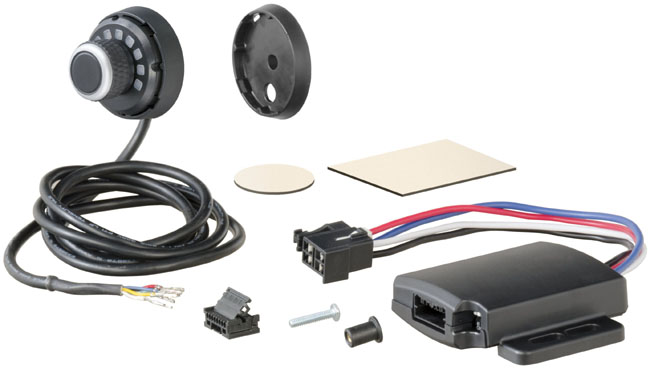

The Spectrum trailer brake controller gives you powerful, precise braking operation in an extremely
simple and subtle design inside your vehicle. It features an LED-equipped, rotary knob interface and
a separate main module with an advanced triple-axis accelerometer. This allows for an OE look and
feel to be maintained inside the cab of your vehicle. The separated design of the Spectrum brake
control allows the main module to be mounted behind the dash of the vehicle, completely out of sight.

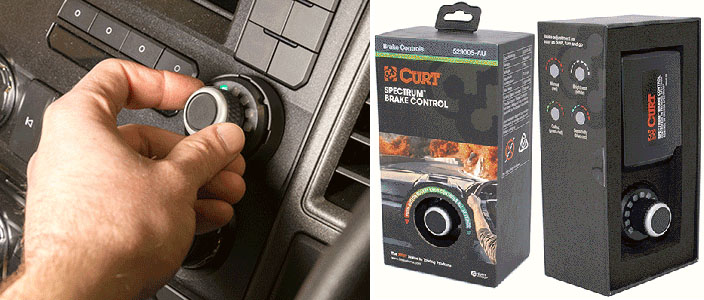

The interface of the Spectrum trailer brake controller is simple but powerful. It is a single rotary knob
with a push-button in the center that allows the driver to adjust brake power output as well as the rate
at which the brakes are applied. It is equipped with ten tri-color LEDs (red, blue and green) to show the
automated power output of the control. There is no need for a separate display or additional controls,
keeping the dash of your vehicle clean, professional and uncluttered.

Behind the Spectrum brake controller is a powerful main module with a triple-axis motion-sensing
accelerometer. This advanced circuit is able to detect the inertia of the vehicle and trailer on all axes
of three-dimensional space. Whatever your speed and whatever grade you are travelling on -- up or
down a hill -- the Spectrum brake control produces the exact amount of power needed for a smooth,
safe stop every time. The main module can be mounted anywhere, at any orientation with the included
mounting brackets or adhesive patch.

The Spectrum electric brake controller is a fully compatible unit, able to operate up to eight trailer brakes
at a time. It can be used on vehicles with ABS brakes and cruise control, and it works with low-voltage
and PWM systems.

The Spectrum installs in ten minutes or less, when used in conjunction with our Erich Jaeger vehicle
specific towing harness kits. These wiring harnesses are vehicle-specific and provided a prepared
connection point for our Spectrum brake controller. The Spectrum also has automatic leveling
and calibration features to simplify the setup process.

Features:

• Controls all brake settings with a simple push-button rotary knob.
• Clean, dash-mounted, OEM-style user interface with 10 tri-color LEDs.
• Main module can be mounted anywhere, at any orientation, out of sight.
• Highly responsive, smooth stops with triple-axis, motion-sensing accelerometer.
• Easily accessible manual override with the press of a button.
• Features two installation options: drill mount or surface adhesive mount.
• Equipped with a quick plug for easy, plug-and-play installation
• Compatible with low voltage or pulse width modulation (PWM) systems.
• Operates 2-8 trailer brakes at a time (1-4 axles)
• User-selectable power output and trailer brake light activation
• Automatic leveling and calibration eliminate setup requirements
• Built-in reverse-polarity and short-circuit protection
• Tow vehicle 'low voltage' and trailer disconnect indicators
• Compatible with ABS and cruise control
• Quick connection harnesses available (that results in a very easy plug and play installation
  when used with Erich Jaeger Towing Kits with prepared brake controller connections.
• Developed and test to be compatible with Erich Jaeger CAN-bus and Solid State towing modules.
• Limited lifetime warranty.
• Developed and Tested for New Zealand & Australian conditions.
