Part number: 22-BS7060
Pack size: EA
Group: Detection - Obstacle Radar
Type: Kit
Feature: 6m Detection Distance

Part # 22-BS7060

12-24 Volt - Heavy Duty Mining & Industrial applications.

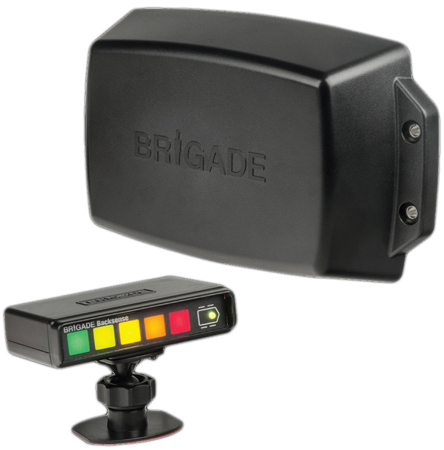

6m detection range, 4.5m width, Sensor, AV display, 9m cable

Designed for the harshest conditions, Brigades Backsense radar sensor systems are
designed to detect people and objects in blind spots, significantly reducing accidents.
They detect stationary and moving objects, providing the driver with in-cab visual and
audible warnings - alerting the operator whose attention can not be focused on all
danger areas. Backsense works effectively in harsh environments and in poor visibility
including darkness, smoke and fog.


  • Helps prevent collisions
  • Reduces accidents and fatalities, injury and sickness time
  • Meets Health and Safety requirements


  • Saves collision damage cost and downtime
  • Saves on third party claims


  • Can be set up to trigger reversing alarms, safety lights, camera systems and
    digital recorders


  • Unaffected by moisture, dust, vibration, heat, cold, UV, snow, ice, high wind,
    water and mud


  • 12-24VDC
  • Maximum detection range of 6m
  • Rugged design for harsh environmental conditions
  • Sensor size (WxHxD) 217 x 129 x 50mm
  • IP69K sensor
  • Frequency modulated continuous wave (FMCW) radar technology
  • Effectively detects stationary, moving and multiple objects
  • 1 activation input
  • 1 trigger output
  • 5 stage audible and visual distance warning display
  • Resistant to water, moisture, dust, vibration, heat, cold, mud and glare


  • Current: 0.8 Amps
  • Power consumption: 8 Watts

Durability & Standards

  • Mechanical shock: 100G
  • Mechanical vibration: 8.3G
  • Operating temperature: -40 to +85C
  • CE marked
  • EMC approved: E
  • BS EN 13309: 2010
  • ISO13766: 2006


  • Close detection zone combined with targeted beam pattern
  • Controlled beam pattern to minimise false warnings
  • Excellent close-in detection
  • Frequency modulated continuous wave radar technology
  • Can trigger other vehicle safety devices such as camera monitor systems or reversing
  • Eliminates possibility of driver interference. The audible warning buzzer cannot be
    switched off, providing fleet operators with peace of mind
  • Clear, easy-to-read display and wide volume range of audible alert
  • Suitable for both on- and off-road applications
  • Extremely rugged design for severe weather conditions and all terrains
  • Effective through non-metallic objects - can fit behind plastic or glass fibre body work
  • Self-diagnostics alert operator to system errors
  • Choice of detection ranges
  • 5 stage audible and visual display
  • Comprehensive certification
