Pollak Master Switch High Current Loads

It is strongly advised to wire this master switch to the negative circuit.
Switch should not be over cranked, or covered in grease, and should be
mounted in a protected area.

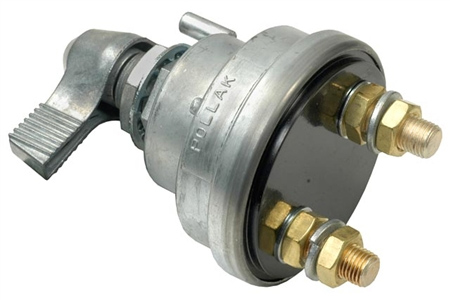

Master Disconnect Switch

• Continuous rating (Make / Break): 180 amps at 12 VDC
• Intermittent rating (carrying current only): 1000 amps at 12 VDC
• 1 cycle: 4 seconds ON / 20 minutes OFF
• Silver plated 1/2 inch - 20 UNF copper studs

Weather resistant o-ring neck seal
High reliability make/break contact design
Heavy plated steel nuts and lockwasher
Number 10-32 thread brass stud
Individually sealed contacts
Split lockwasher
Solid copper studs
Brass retaining nuts
High impact plastic terminal plate with weatherproof seal
One piece zinc die-cast body provides the ultimate in strength and reliability
Steel antirotation washer
Zinc die-cast lever and mounting nuts
