Inductive Sensor 8mm NPN N/O & N/C M18

Rated switching distance Sn:  8 mm

• Mounting conditions: Flush
• Secured operating distance: < (0,81 x Sn) mm
• Correction factors: St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
• Repeat accuracy: < 2 % of full scale
• Temperature drift: < 10 %
• Hysteresis: 315 %
• Ambient temperature: -25+70 C

Operating voltage: 10-30 VDC

• Residual ripple: < 10 % Uss
• DC rated operational current: < 200 mA
• No-load current I0:: < 15 mA
• Residual current: < 0.1 mA
• Isolation test voltage: < 0.5 kV
• Short-circuit protection: yes/ Cyclic
• Voltage drop at Ie: < 1.8 V
• Wire breakage/Reverse polarity protection: yes/ Complete

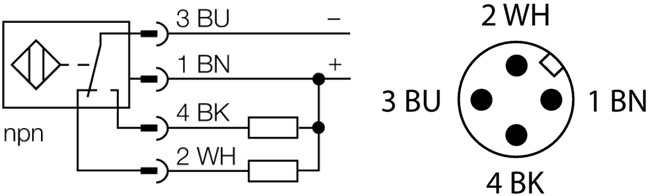

• Output function: 4-wire, Complementary contact, NPN
• Switching frequency: 0.5 kHz

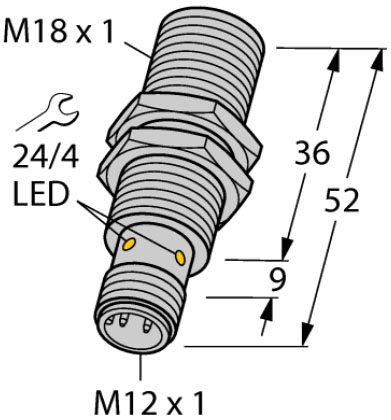

Design: Threaded barrel,M18 1

• Dimensions: 52 mm
• Housing material: Metal, CuZn, Chrome-plated
• Active area material: Plastic, PA12-GF30
• Max. tightening torque housing nut: 25 Nm
• Electrical connection: Connectors, M12 1
• Vibration resistance: 55 Hz (1 mm)
• Shock resistance: 30 g (11 ms)
• Protection class: IP67
• MTTF: 2283 years acc. to SN 29500 (Ed. 99) 40 C
• Packaging unit 1

Switching state: LED, Yellow
