Spark Shop Ultimate
Part number: 32-824
Pack size: EA
Group: Micro
Type: Lever / Roller
Amp/Volt: 5A - 25VDC / 15A - 250VAC
Size: Standard
Feature 1: Medium Arm
Feature 2: Off/On (NO / NC)

Part # 32-824
Part # 32-824

Regular or sealed operating heads
Momentary Contacts
Plastic or phenolic housing
Regular or light operating force
Soldering or Fast terminal
Temprature Range
-15DegC > 80DegC
Rating:
5.0A 25VDC, 15.0A 250VAC

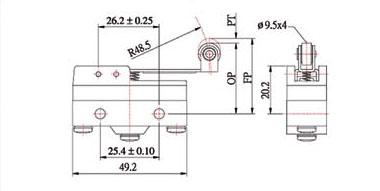

Operating Force Max (OF) - 100g
Releasing Force (RF) - 21g
Free Position(FP) - 36.5mm
Operating Position(OP) - 30.2 +/- 0.8
Pre-Travel Max (PT) - 7.1mm
Over-Travel Min (OT) - 4.0mm
Travel Differential(DT) - 1.6mm
