Regular or sealed operating heads
Momentary Contacts
Plastic or phenolic housing
Regular or light operating force
Soldering or Fast terminal
Temprature Range
-15DegC > 80DegC
Rating:
5.0A 25VDC, 15.0A 250VAC

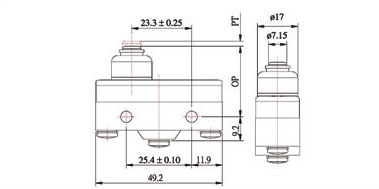

Operating Force Max (OF) - 540g
Releasing Force (RF) - 114g
Operating Position(OP) - 28.2 +/- 0.5
Pre-Travel Max (PT) - 2.3mm
Over-Travel Min (OT) - 1.6mm
Travel Differential(DT) - 0.06mm
