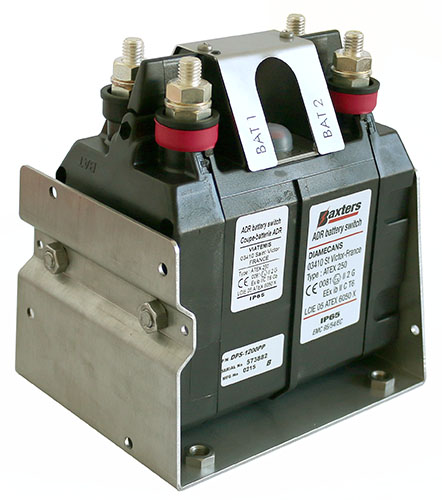

Electronic Battery Master Switch 12V Dual Positive IP69K Case

Note: This switch is not supplied with plugs and terminals. See below linked plug kit to suit

IMPORTANT NOTE: THIS SWITCH IS
.......DUAL POSITIVE

(NOTE: Dual Positive - Suits Kenworth Trucks ONLY)

Baxters DPS-1202PP - 2nd Generation Electronic Battery Master Switch
12 Volt (Directly replaces 32-DPS1200PP)

NOTE: READ THE INSTALLER MANUAL BEFORE FITTING !
EVEN THOUGH THE SWITCH BODY IS NOW RATED IP69K, IT IS
STILL HIGHLY RECOMMENDED THIS SWITCH IS MOUNTED IN A
PROTECTED LOCATION OR ENCLOSED BOX ON THE VEHICLE TO
PREVENT POSSIBLE WATER INGRESS & PROTECTION FROM
PRESSURE WASHING THROUGH THE CABLE GLANDS (IP54).
NO WARRANTY ON SWITCHES FOUND TO HAVE INTERNAL
WATER DAMAGE DUE TO THIS.

- Voltage Range 9-15V (12V)
- Rating: 250A Cont. / 600 A 30 Secs. / 2500A 5 Secs
- Field isolation for USA & European Trucks (10Amp Instant)
- Delayed ECU shut down to prevent re-programming and voltage spikes(3 Amp - 10 Second delay)
- Luminous intergrated LED push button switches (on/offroll over test)
- Direct plug in to IROS roll over device(32-VRD1224) works with all other Roll over devices.
- Upgraded IP69K Rated waterproof enclosure (Feb 2016)
- IP65 rated sealed connectors
- Silver plated Contacts, Battery Studs & Washers
- Vibration resistant construction
- Stainless Steel mounting bracket (Lucas SSB interchangeable)
- Low Battery Voltage disconnect option.

NOTE: Refer .pdf below for full Installation and
Specification Manual

Spare Parts / Accessories - See below links

Switch Standard Approvals :
ADR / CE 0081 / IP65
EN50014 (1997) + Ammend .1 and 2
EN50020 (2002) (European Standards)
Ex ll 2 G / EEx ib llc T6 (Explosion Proof Ratings)

FULLY CERTIFIED FOR DANGEROUS GOODS VEHICLES IN NZ & AUSTRALIA.
