Erich Jaeger
Part number: 17-950
Pack size: EA
Group: Connector
Type: Trailer
Application: Round - Socket
Size: 15 Pin
Feature: Plastic

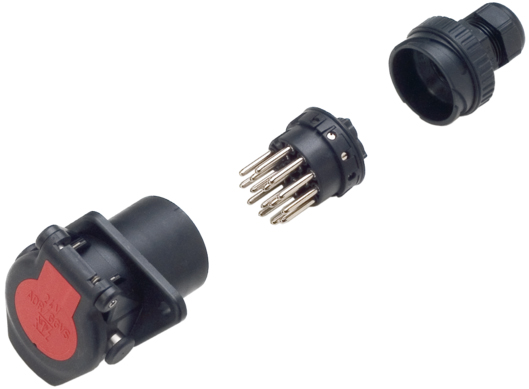

Part # 17-950
Part # 17-950
Part # 17-950
Part # 17-950

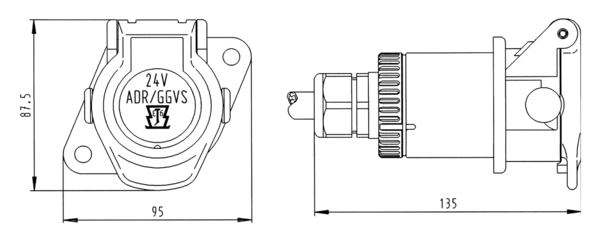

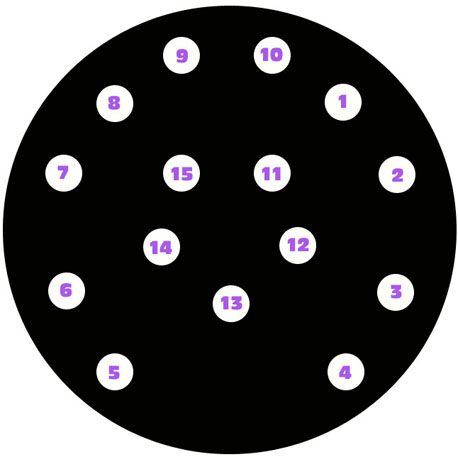

Note suits below linked 15 core trailer cable

1)  1.5mm2    - Yellow - Indicators LEFT
2) 1.5mm2     -   Green - Indicators RIGHT
3) 1.5mm2     -   Blue - Rear fog light
4)  2.5mm2 -   White - Earth
5) 1.5mm2     -   Black - Side lights, end outmarker lights, n/plate light LEFT
6) 1.5mm2     -   Brown - Side lights, end outmarker lights, n/plate RIGHT
7) 1.5mm2     -   Red - Brake Lights
8) 1.5mm2     -   Pink - Reverse Lights
9) 2.5mm2 -   Orange - Positive direct from battery
10) 1.5mm2   -   Grey - Brake wear sensor
11) 1.5mm2   -   White/Black - Pressure brakes & energy accumulation sensor
12) 1.5mm2   -   White/Blue - Connection for lifting 3rd axle
13) 2.5mm2 -   White/Red - Return earth for data transmission lines
14) 1.5mm2   -   White/Green - CANH Connection
15) 1.5mm2   -   White/Brown - CANL Connection
