Erich Jaeger
Part number: 17-951
Pack size: EA
Group: Connector - Trailer
Type: Round
Function: Plug
Size: 15 Pin
Feature: Plastic

Part # 17-951
Part # 17-951
Part # 17-951
Part # 17-951

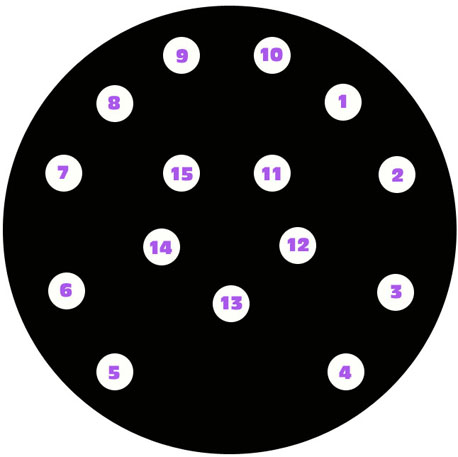

Note suits below linked 15 core trailer cable

1) �1.5mm2 � �- Yellow -�Indicators LEFT
2) 1.5mm2 � � - ��Green -�Indicators RIGHT
3) 1.5mm2 � � - ��Blue -�Rear fog light
4) �2.5mm2 - ��White -�Earth
5) 1.5mm2 � � - ��Black -�Side lights, end outmarker lights, n/plate light LEFT
6) 1.5mm2 � � - ��Brown -�Side lights, end outmarker lights, n/plate RIGHT
7) 1.5mm2 � � - ��Red -�Brake Lights
8) 1.5mm2 � � - ��Pink -�Reverse Lights
9) 2.5mm2 - ��Orange -�Positive direct from battery
10) 1.5mm2 � - ��Grey -�Brake wear sensor
11) 1.5mm2 � - ��White/Black -�Pressure brakes & energy accumulation sensor
12) 1.5mm2 � - ��White/Blue -�Connection for lifting 3rd axle
13) 2.5mm2 - ��White/Red -�Return earth for data transmission lines
14) 1.5mm2 � - ��White/Green -�CANH Connection
15) 1.5mm2 � - ��White/Brown -�CANL Connection
