Part number: 19-426
Pack size: EA
Type: Beacon - LED
Mount: Fixed
Colour: Amber
Suppression: Suppression - Basic
Size: 100 x 127mm
Feature: Class 2 - Sim Rotate / Flasher

Part # 19-426
Part # 19-426

Class 1 = On-road vehicles operating in speed of traffic (eg: fire, police, ambulance,
rescue, pilots, breakdown utes, tow trucks)
Class 2 = Offroad vehicles and those NOT in speed of traffic (eg; road works, forklifts,
industrial machines etc)
Class 3 = Not moving at all (eg; buildings, gensets etc)

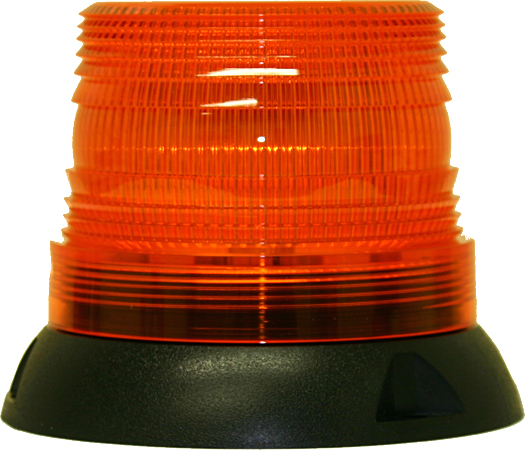

19-426 is a Class 2 weatherproof beacon containing four high intensity LED's and
produced 20 flash patterns

  • Class 2
  • 20 flash patterns
  • Operating Voltage: DC11V-30V
  • Reverse Polarity Protected
  • Storage Temperature Range: - 40C ~ + 90C
  • Operating Temperature Range: - 30C ~ + 65C






Setting Flash Patterns

COLOR ----FUNCTION ------CONNECT TO

Red Power +VDC

Black ----- Ground -------------- Chassis Ground

Blue Pattern Switching Chassis Ground to Activate

Yellow Syn(simulated) All Yellow Wires


Apply blue wire to black wire (chassis ground)

  • Less than 1 second for the NEXT pattern
  • 1 to 3 seconds for the PREVIOUS pattern
  • 3 to 5 seconds for the DEFAULT pattern
  • Greater than 5 seconds to TURN OFF the device


Flash Patterns

1 - Triple Flash 75FPM (default)
2 - Double Flash 75FPM SIM
3 - Double Flash 150FPM SIM
4 - Single Flash 75FPM SIM
5 - Single Flash 150FPM SIM
6 - Triple Flash 75FPM ALT
7 - Double Flash 75FPM ALT
8 - Double Flash 150FPM ALT
9 - Single Flash 75FPM ALT
10 - Single Flash 150FPM ALT
11 - Rotator 50FPM
12 - Rotator 75FPM
13 - Rotator 125FPM
14 - Rotator 250FPM
15 - Quad Flash 75FPM
16 - Double Flash SIM
17 - Single Flash 120FPM
18 - STEADY
19 - AUTORUN
20 - OFF
