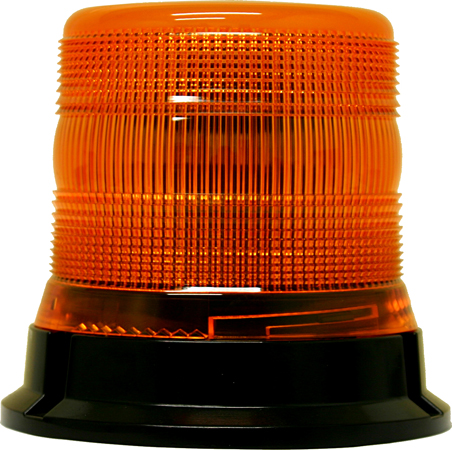

Setting Flash Pattern
COLOR FUNCTION CONNECT TO
Red Power +VDC
Black Ground Chassis Ground
Blue Pattern Switching Chassis Ground to Activate
Yellow Syn(simulated) All Yellow Wires
Apply blue wire to black wire (chassis ground)
Flash Patterns - all flash patterns can be synchronised
1 - Single Flash
2 - Double Flash
3 - Rotator
4 - Single Flash 75 Sim All flash
5 - Single Flash 75 Flashes Per Minute
6 - Single Alert 75 Flashes Per Minute
7 - Quad Flash 75 Flashes Per Minute
8 - Double Flash 75 Flashes Per Minute
9 - Rotator 75 Flashes Per Minute
10 - Rotator 100 Flashes Per Minute
11 - Rotator 150 Flashes Per Minute
12 - Rotator 200 Flashes Per Minute
13 - OFF
